Dlibのインストール

Docker Anaconda環境にDlibをインストールする - 追憶行

僕の環境ではインストールに30分程の時間を要しました。


検出モデルの設定

顔のパーツの検出モデルはDlibのページからDLできます。

http://dlib.net/files/shape_predictor_68_face_landmarks.dat.bz2

# 検出モデル
predictor = dlib.shape_predictor("shape_predictor_68_face_landmarks.dat")
detector = dlib.get_frontal_face_detector()


検出の実行

始めに顔の検出を行い、顔検出結果から器官の検出を行います。

img = cv2.imread("img/woman-2299736_640.jpg")
# 正面向きの顔検出
dets = detector(img, 1)
for k, d in enumerate(dets):
    #顔器官の検出
    shape = predictor(img, d)


検出結果のプロット

shape_predictor_68_face_landmarksが指す通り、68個の特徴量が検出され、内、16個までが輪郭、残りの52個が内側の器官として検出されるようです。

   #plot用の線、点の設定
    color_f = (0,0,225)
    color_l_out = (255,0,0)
    color_l_in = (0,255,0)
    line_w = 3
    circle_r = 3
    fontType = cv2.FONT_HERSHEY_SIMPLEX
    fontSize = 1
    #顔検出範囲のプロット
    cv2.rectangle(img, (d.left(), d.top()), (d.right(), d.bottom()),
                 (255,255,255), line_w)

    num_of_points_out = 17
    num_of_points_in = shape.num_parts - num_of_points_out
    gx_out = 0
    gy_out = 0
    gx_in = 0
    gy_in = 0
    for shape_point_count in range(shape.num_parts):
        shape_point = shape.part(shape_point_count)
        print("No.{} position: ({},{})".format(shape_point_count, shape_point.x, shape_point.y))
        if shape_point_count < num_of_points_out:
            #検出した顔輪郭の描画
            cv2.circle(img, (shape_point.x, shape_point.y), circle_r, color_l_out, line_w)
            gx_out = gx_out + shape_point.x / num_of_points_out
            gy_out = gy_out + shape_point.y / num_of_points_out
        else:
            #検出した顔パーツの描画
            cv2.circle(img, (shape_point.x, shape_point.y), circle_r,color_l_in, line_w)
            gx_in = gx_in + shape_point.x / num_of_points_in
            gy_in = gy_in + shape_point.y / num_of_points_in


    # 顔の傾きを計算
    theta = math.asin(2*(gx_in-gx_out)/(d.right()-d.left()))
    radian = theta*180/math.pi
    print("theta:{} (radian:{})".format(theta,radian))

    if radian<0:
        textPrefix = "  left "
    else:
        textPrefix = "  right "
    textShow = textPrefix + str(round(abs(radian),1)) + " deg."
    # 顔の傾き説明を描画
    cv2.putText(img, textShow, (d.left(), d.top()), fontType, fontSize, (255,255,255), line_w)

plt.imshow(img)
plt.xticks([]), plt.yticks([])  # to hide tick values on X and Y axis
plt.show()


元画像

f:id:letitride:20200719002759j:plain:w500

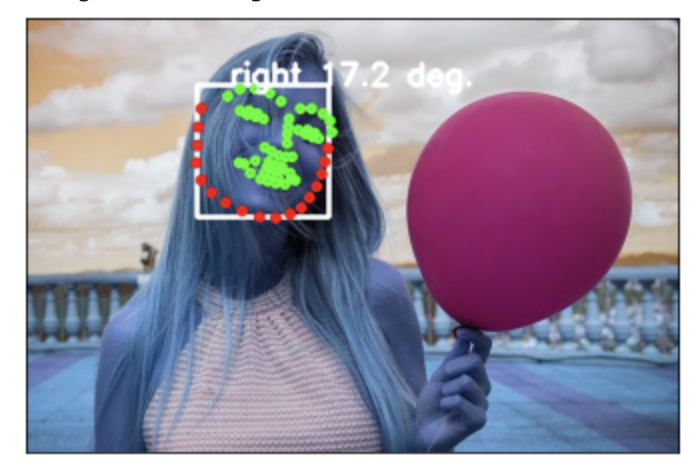

検出結果

f:id:letitride:20200719002826p:plain:w500

コード全文

import cv2
import dlib
import math

# 検出モデル
predictor = dlib.shape_predictor("shape_predictor_68_face_landmarks.dat")
detector = dlib.get_frontal_face_detector()

img = cv2.imread("img/woman-2299736_640.jpg")
# 正面向きの顔検出
dets = detector(img, 1)
for k, d in enumerate(dets):
    #顔器官の検出
    shape = predictor(img, d)

    #plot用の線、点の設定
    color_f = (0,0,225)
    color_l_out = (255,0,0)
    color_l_in = (0,255,0)
    line_w = 3
    circle_r = 3
    fontType = cv2.FONT_HERSHEY_SIMPLEX
    fontSize = 1
    #顔検出範囲のプロット
    cv2.rectangle(img, (d.left(), d.top()), (d.right(), d.bottom()),
                 (255,255,255), line_w)

    num_of_points_out = 17
    num_of_points_in = shape.num_parts - num_of_points_out
    gx_out = 0
    gy_out = 0
    gx_in = 0
    gy_in = 0
    for shape_point_count in range(shape.num_parts):
        shape_point = shape.part(shape_point_count)
        print("No.{} position: ({},{})".format(shape_point_count, shape_point.x, shape_point.y))
        if shape_point_count < num_of_points_out:
            cv2.circle(img, (shape_point.x, shape_point.y), circle_r, color_l_out, line_w)
            gx_out = gx_out + shape_point.x / num_of_points_out
            gy_out = gy_out + shape_point.y / num_of_points_out
        else:
            cv2.circle(img, (shape_point.x, shape_point.y), circle_r,color_l_in, line_w)
            gx_in = gx_in + shape_point.x / num_of_points_in
            gy_in = gy_in + shape_point.y / num_of_points_in

    theta = math.asin(2*(gx_in-gx_out)/(d.right()-d.left()))
    radian = theta*180/math.pi
    print("theta:{} (radian:{})".format(theta,radian))

    if radian<0:
        textPrefix = "  left "
    else:
        textPrefix = "  right "
    textShow = textPrefix + str(round(abs(radian),1)) + " deg."
    cv2.putText(img, textShow, (d.left(), d.top()), fontType, fontSize, (255,255,255), line_w)


plt.imshow(img)
plt.xticks([]), plt.yticks([])  # to hide tick values on X and Y axis
plt.show()
